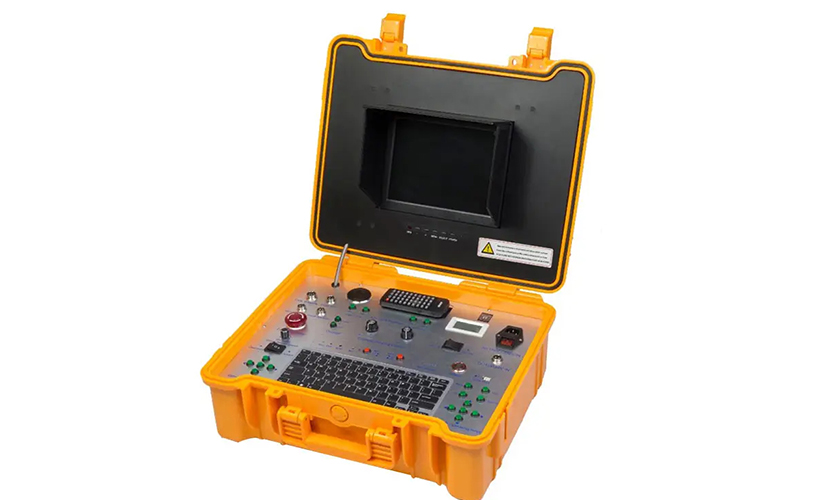

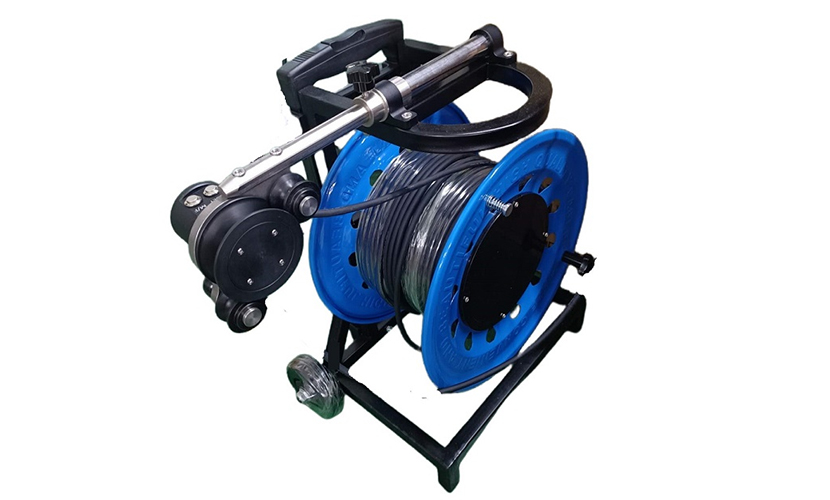

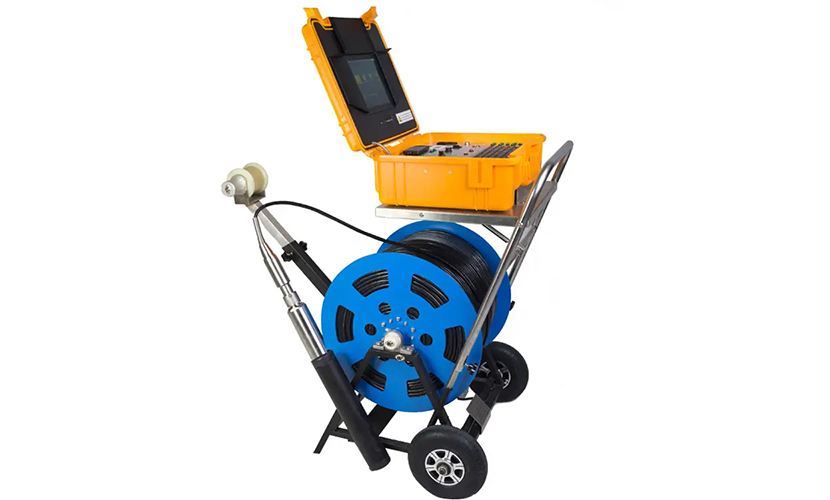

1. Dia.63mm dual (Side/down) camera 2. Waterproof up to 50bars 3. 360 degree rotation camera 4. 10inch LCD monitor ,DVR control box 5. Cable length from 200m to 500m 6. Electrical winch cable reel 7. Depth counter function
TECHNICAL DATA
Technical Parameters of GLF-UDC-V10S
Type
GLF-UDC-V10S
lmage sensor
1/4HD CMOS
Resolution
700TWL
signal type
Analog camera
Working Depth
0-500M
Dimensions
62mm X 610mm
Screen size
10” LCD screen
Cables
8.5mm Length500m
Battery capacity
8800mA
Working temperature
-10-50℃
Housing Material
Stainless steel ;aluminum alloy; titanium alloy
